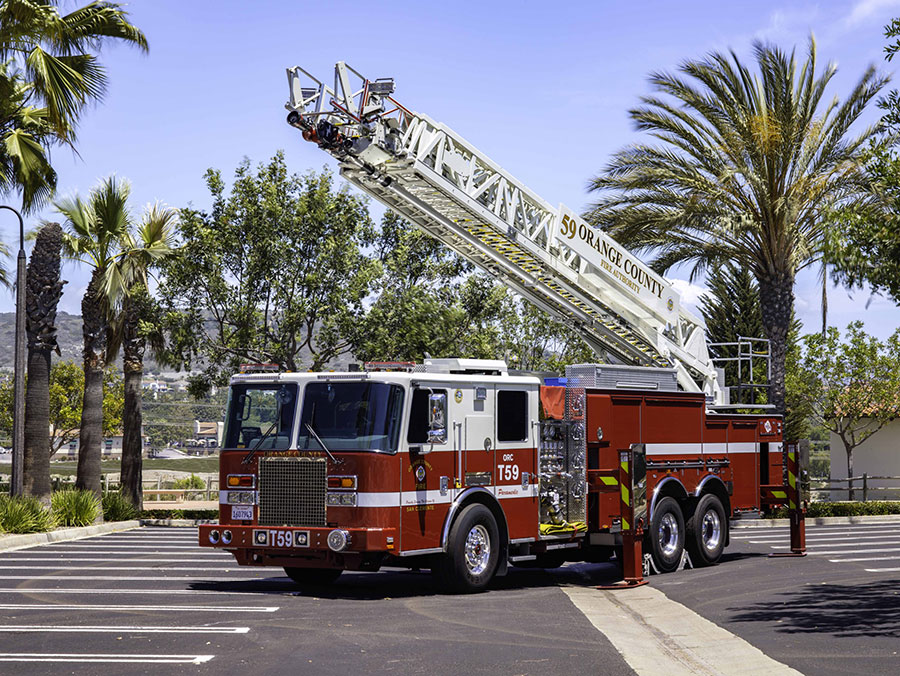

GSO #11252
ORANGE COUNTY FIRE AUTHORITY, CA
GSO #11252
ORANGE COUNTY FIRE AUTHORITY, CA
CHASSIS
96″ Severe Service Chassis with Flat Roof
Seating positions for 5
Cummins X12 500 HP Engine
Allison 4500 EVSR with Output Retarder and Compression Brake
Class-1 Multiplex System
HiViz FireTech 27″ Mini Brow Light Above Each Windshield
DIMENSIONS
Overall Length: 38′-7″
Overall Height: 11′-6″
Wheelbase: 227″
PUMP & PLUMBING
300 Gallon UPF Poly III Water Tank
Hale DSD 150- 1,500 gpm Single Stage Pump
BODY
Tuff Truck Body
Onan 8kW Mobile PTO/HYD Generator
Amdor Roll-up Doors with Painted Finish
Code 3 LED Warning Lights
HiViz FireTech 46″ Scene Lights
AERIAL
103′ 4 Section AerialCat Ladder
94′ Horizontal Reach
50 mph Wind Load Rating
1/4″ Ice on Entire Structure
-7Degree to +80 Degree Electric Range
2.5 to 1 Structural Safety Factor
500lb. Dry Tip Load
500lb Wet Tip Load Flowing 1500 gpm
Two (2) Sets of H Style Outriggers with 12′ Stance
Deep Penetrating Outriggers, 11-Degree Leveling Capability
12′ Jack Stanc
